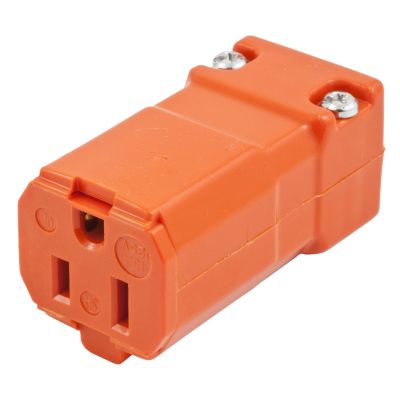

Hubbell Wiring HBL515CVO
Wiring Device-Kellems Valise HBL515CVO Female Insulated Standard Straight Cord Mount Connector Body, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange
Plugs Connectors
7608249
HBL515CVO
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Orange
- Cord Diameter: 0.22 to 0.66
- Dimensions: 1.85 in Dia x 4.42 in L
- Enclosure: IP20
- Grade: Commercial/Industrial
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Insulated Standard Straight Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Valise Connector Body, Female Insulated Standard Straight Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Orange, 1.85 in Dia x 4.42 in L
- Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
