Hubbell Wiring HBL520C9W

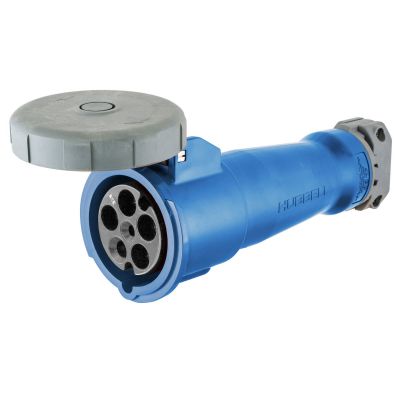

Wiring Device-Kellems HBL520C9W 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 120/208Y VAC, 20 A, 4 Poles, 5 Wires, Blue
Plugs Connectors
467668
HBL520C9W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Blue
- Dimensions: 8.54 in L x 3.94 in W
- Grade: Industrial
- Material: Composite
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount
- Voltage Rating: 120/208Y VAC
Wiring Device-Kellems, HBL520C9W, Pin and Sleeve Connector, 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount, 120/208Y VAC, 20 A, 1/2 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 8.54 in L x 3.94 in W Dimensions
- Features
- Corrosion-resistant self-closing gasketed cover
- Color coded housings by voltage for easy identification
- Insulated non-metallic housing
