Hubbell Wiring HBL5266CAT

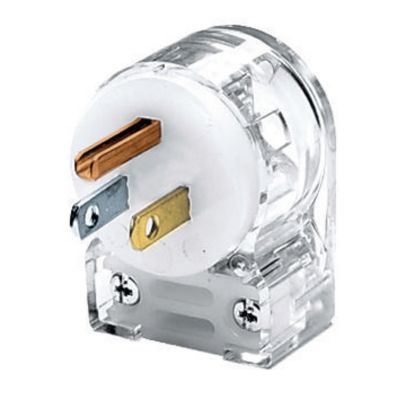

Wiring Device-Kellems Insulgrip HBL5266CAT 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Clear
Plugs Connectors
6994457
HBL5266CAT
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Clear
- Cord Diameter: 0.325 to 0.655
- Dimensions: 1.52 in W x 1.21 in D x 2.08 in H
- Enclosure: IP20
- Grade: Commercial/Industrial
- Material: Polycarbonate
- Nema Rating: 5-15P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Clear, 1.52 in W x 1.21 in D x 2.08 in H
- Features
- All portable cord
- Indoor dry unless protected by additional means
- Cord mounted
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Angled, low profile housing
- Transparent for easy visual inspection of termination
- Four position assembly
