Hubbell Wiring HBL530P9W

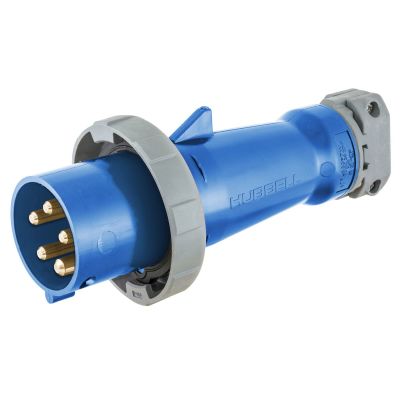

Wiring Device-Kellems HBL530P9W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Blue
Plugs Connectors
4579259
HBL530P9W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Blue
- Dimensions: 4.02 in Dia x 8.54 in L
- Enclosure: IP67
- Grade: Industrial
- Horsepower: 2
- Material: Composite
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
- Voltage Rating: 120/208Y VAC
Wiring Device-Kellems, HBL530P9W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 120/208Y VAC, 30 A, 2 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 4.02 in Dia x 8.54 in L Dimensions
- Features
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- Solid one piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
- Withstands 3000 VAC dielectric voltage
- Stainless steel terminal screws
- High impact thermoset retainer
- Solid neoprene sealing gasket
- Reinforced thermoplastic polyester locking ring
