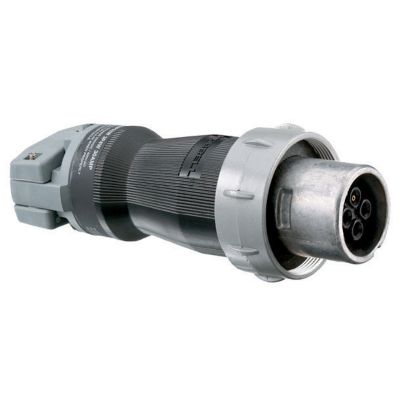

Hubbell Wiring HBL530PS1WR
Wiring Device-Kellems Insulgrip HBL530PS1WR Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 5 Wires, Black/Gray
Plugs Connectors
6957580
HBL530PS1WR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Black/Gray
- Dimensions: 3 in Dia x 7.54 in L
- Frequency Rating: 50/400
- Grade: Industrial
- Material: Composite
- Nema Rating: 4X
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount
- Voltage Rating: 600 VAC/250 VDC
Wiring Device-Kellems, HBL530PS1WR, Pin and Sleeve Plug, Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount, 600 VAC/250 VDC, 30 A, 50/400 Hz Frequency, 4 Pole, 5 Wires, 4X NEMA Rating, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3 in Dia x 7.54 in L Dimensions
- Features
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Locking ring provides UL type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- Pin chamber confines arcing within the interior chamber
