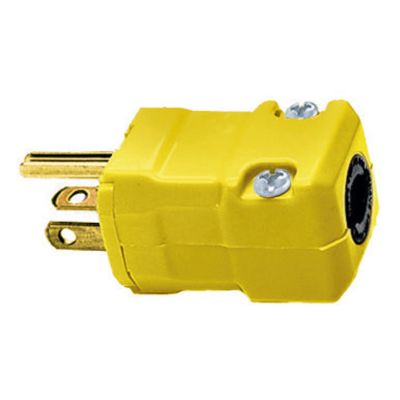

Hubbell Wiring HBL5364VY
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Yellow, Single Pack.
Supporting Information
- Hinged one piece body design for easy assembly|Powerful, offsetting cord grips clamp on individual conductors|Assembly screws are captive and will not fall out while wiring
- Hinged one piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
- Noryl® (polyphenylene oxide) cord clamp material
- 0.06 in brass contact blades
- 0.04 in copper alloy ground contact blade
- Steel (copper or nickel finish) terminal screw
- Steel (green finish) ground screw
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 10 AWG stranded copper conductor terminal accommodation
- Permanent part of device product identification
- Brand: Hubbell WiringAmperage Rating: 20Color: YellowCord Diameter: 0.22 to 0.66Dimensions: 1.87 x 1.25 x 1.87Enclosure: IP20
