Hubbell Wiring HBL53CM69C

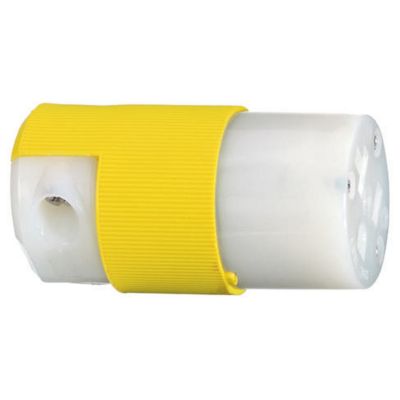

Wiring Device-Kellems Insulgrip HBL53CM69C Female Grounding Insulated Standard Cord Mount Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
407419
HBL53CM69C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Cord Diameter: 0.23 to 0.72
- Dimensions: 2.78 x 1.52 x 2.78
- Enclosure: IP20
- Grade: Commercial/Industrial
- Material: Nylon
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Grounding Insulated Standard Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Insulgrip Straight Blade Connector, Female Grounding Insulated Standard Cord Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.78 x 1.52 x 2.78 in
- Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Roomy wiring chamber provides ample space for wiring
- Corrosion resistant
- 14 to 12 AWG conductor range
- Indoor dry unless protected by additional means
- Cord mounting
