Hubbell Wiring HBL5464VY

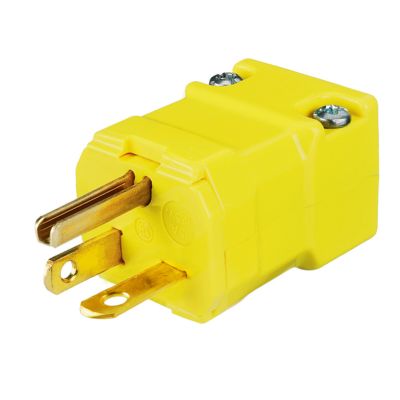

Wiring Device-Kellems Valise HBL5464VY 1-Phase Grounding Male Portable Standard Cord Mount Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
148241
HBL5464VY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Cord Diameter: 0.22 to 0.66
- Dimensions: 1.88 x 1.5 x 1.13
- Enclosure: IP20
- Grade: Commercial/Industrial
- Horsepower: 2
- Material: Composite
- Nema Rating: 6-20p
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Grounding Male Portable Standard Cord Mount
- Voltage Rating: 250
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 1.88 x 1.5 x 1.13 in
- Features
- Hinged one piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
- Nylon blade holder material
- Noryl® (polyphenylene oxide) cord clamp material
- 0.06 in brass contact blades
- 0.04 in copper alloy ground contact blade
- Steel (copper or nickel finish) terminal screw
- Steel (green finish) ground screw
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 12 AWG solid or stranded copper conductor terminal accommodation
