Hubbell Wiring HBL5469VY

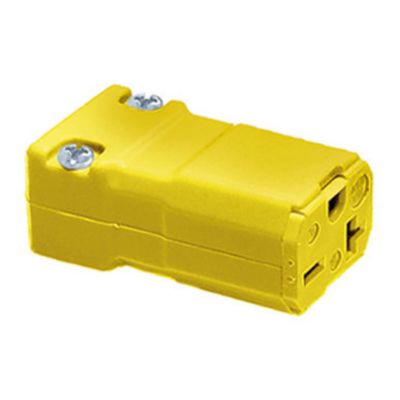

Wiring Device-Kellems Valise HBL5469VY Female Grounding Insulated Cord Mount Straight Blade Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
151035 HBL5469VY
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Color: Yellow
  • Cord Diameter: 0.22 to 0.66
  • Dimensions: 2.38 x 1.25 x 0.88
  • Enclosure: IP20
  • Grade: Commercial/Industrial
  • Horsepower: 2
  • Material: Nylon
  • Nema Rating: 6-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: Female Grounding Insulated Cord Mount
  • Voltage Rating: 250
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20R, Yellow, Single Pack.
  • Features
  • Hinged one-piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Withstands 2000 VAC minimum dielectric voltage
  • 18 to 12 AWG copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • -40 to 75 deg C operating temperature
