Hubbell Wiring HBL560P5W

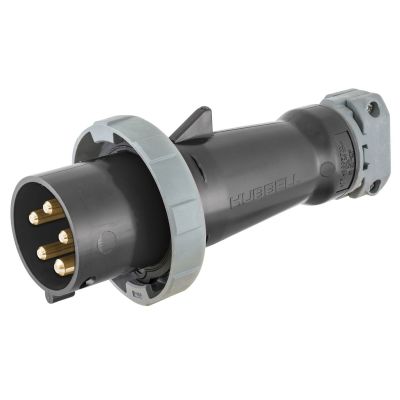

Wiring Device-Kellems HBL560P5W 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 347/600Y VAC, 60 A, 4 Poles, 5 Wires, Black
Plugs Connectors
6907911 HBL560P5W
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 60
  • Color: Black
  • Dimensions: 4.49 in Dia x 10.15 in L
  • Enclosure: IP67
  • Grade: Industrial
  • Horsepower: 40
  • Material: Composite
  • Number of Poles: 4
  • Number Of Wires: 5
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount
  • Voltage Rating: 347/600Y VAC
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Wye 347/600V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Black, Watertight
  • Features
  • 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
  • Solid 1-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal when mated with receptacle or connector
  • Heavy duty external cord grips for maximum cord retention
