Hubbell Wiring HBL560P7W

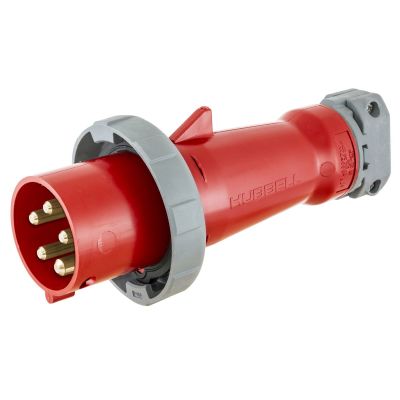

Wiring Device-Kellems HBL560P7W 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 277/480Y VAC, 60 A, 4 Poles, 5 Wires, Red
Plugs Connectors
4579274
HBL560P7W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 60
- Color: Red
- Dimensions: 4.49 in Dia x 10.15 in L
- Enclosure: IP67
- Grade: Industrial
- Horsepower: 10
- Material: Composite
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount
- Voltage Rating: 277/480Y VAC
Wiring Device-Kellems Pin and Sleeve Plug, 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount, 277/480Y VAC, 60 A, 10 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Composite, Red, 4.49 in Dia x 10.15 in L
- Features
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- Solid 1-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
