Hubbell Wiring HBL560P9WR

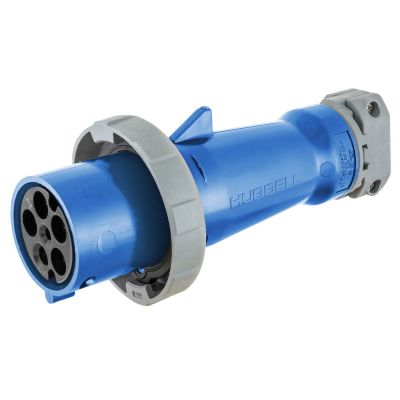

Hubbell HBL560P9WR Reversed Pin & Sleeve Plug, 120/208 VAC, 60 A, 4 Poles, 5 Wires, Blue
Plugs Connectors
7184426 HBL560P9WR
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 60
  • Color: Blue
  • Dimensions: 4.49 in Dia x 10.15 in L
  • Material: Nylon
  • Number of Poles: 4
  • Number Of Wires: 5
  • Enclosure: IP67
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: Reversed
  • Voltage Rating: 120/208
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight- Reversed
  • Features
  • 3-phase
  • Nickel plated brass clamp nut
  • Stainless steel terminal screws, assembly screws, cord clamp screws
  • Brass ground, phase pins
  • Thermoset polyester contact carrier and retainer
  • Epoxy painted aluminum lock ring
  • Rynite SST35 cord clamps
