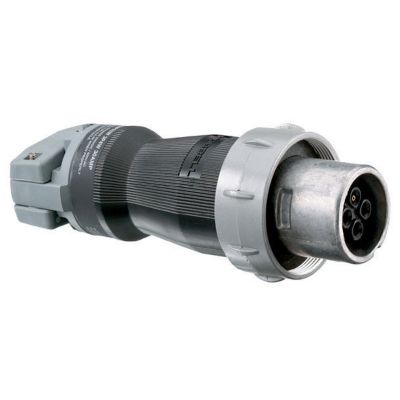

Hubbell Wiring HBL560PS1WR
Wiring Device-Kellems, HBL560PS1WR, Pin and Sleeve Plug, Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount, Series: HBL, 600 VAC/250 VDC, 60 A, 50 to 400 Hz Frequency, 4 Pole, 5 Wires, 4X NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.7 in Dia x 9.6 in L Dimensions
Supporting Information
- Locking ring provides UL Type 4X watertight, dust-tight seal|Catalog number and rating visible while in use|All-Brass sleeve contacts provide reliable electrical contact
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Locking ring provides UL type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- Pin chamber confines arcing within the interior chamber
- Brand: Hubbell WiringAmperage Rating: 60Color: Black/GrayDimensions: 3.7 in Dia x 9.6 in L
