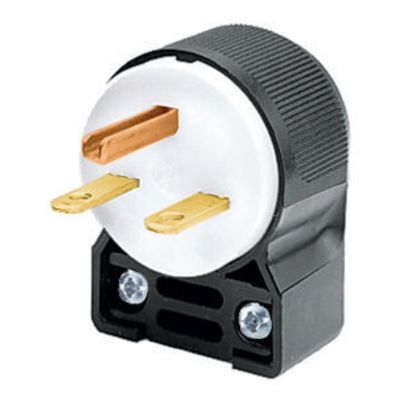

Hubbell Wiring HBL5666CA

Wiring Device-Kellems Insulgrip HBL5666CA 1-Phase Angle Grounding Portable Standard Cord Mount Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Plugs Connectors
1555158 HBL5666CA
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL5666CA
  • Amperage Rating: 15
  • Color: Black/White
  • Cord Diameter: 0.325 to 0.655
  • Dimensions: 2.11 x 1.53 x 1.22
  • Enclosure: IP20
  • Grade: Commercial/Industrial
  • Horsepower: 2
  • Material: Composite
  • Nema Rating: 6-15P
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Angle Grounding Portable Standard Cord Mount
  • Voltage Rating: 250
Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase Angle Grounding Portable Standard Cord Mount, 250 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 6-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.11 x 1.53 x 1.22 in
QTY
Add to Wishlist
  • Features
  • Corrosion-resistant
  • Grounding plug
  • Cord mounted
  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
  • Individually molded face for each blade configuration keeps debris OUT of plug interior
  • Roomy wiring chamber provides ample space for wiring
  • Individual wiring terminals completely enclosed in their own separate chambers
  • Powerful, off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminals
  • Ribbed nylon housing is impact and chemical-resistant
  • Beveled housing prevents snagging
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • VARI-SIZE® pointer set to smaller than gauge position
  • Multiple drive screws provide screwdriver versatility
  • Powerful off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminations
  • Catalog number is visible ON the device while in use for easy identification
  • Transparent angled wiring entrance holes permit straight in conductor insertion
