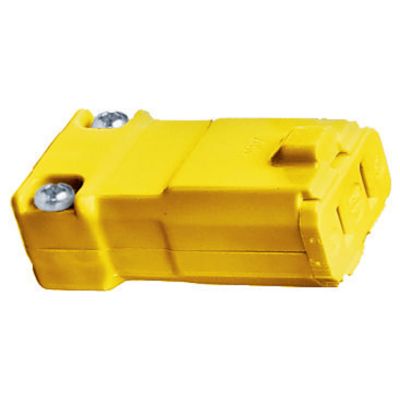

Hubbell Wiring HBL5869VY
Wiring Device-Kellems Valise HBL5869VY Female Insulated Non-Grounding Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 2 Wires, Yellow
Plugs Connectors
404374
HBL5869VY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Cord Diameter: 0.218 to 0.385
- Dimensions: 2.38 x 1.25 x 0.88
- Enclosure: IP20
- Grade: Commercial/Industrial
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 1-15R
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Insulated Non-Grounding Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Valise Straight Blade Connector, Female Insulated Non-Grounding Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 2 Wires, 1-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.218 to 0.385 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.38 x 1.25 x 0.88 in
- Features
- Hinged one-piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 14 AWG copper conductor terminal accommodation
- Certified for current interrupting at full rated current
- -40 to 75 deg C operating temperature
