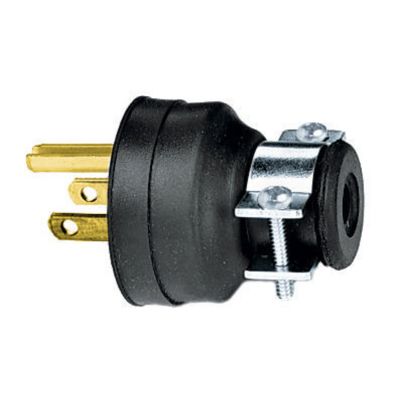

Hubbell Wiring HBL5921

Wiring Device-Kellems HBL5921 1-Phase Grounding Male Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
24483 HBL5921
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 15
  • Color: Black
  • Cord Diameter: 0.312 to 0.468
  • Enclosure: IP20
  • Grade: Commercial/Industrial
  • Horsepower: 1/2
  • Material: Polycarbonate
  • Nema Rating: 5-15P
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Grounding Male Portable Standard Cord Mount
  • Voltage Rating: 125
Straight Blade Devices, Male Plug, Finger Grip, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack
  • Features
  • Insulprene body
  • External cord clamp
  • Dead front construction
  • Nylon natural blade holder material
  • Polycarbonate clear retainer material
  • Nylon natural cord clamp material
  • 0.06 in brass contact blades
  • 0.04 in copper alloy ground contact blade
  • #8-32 brass/nickel plated for neutral terminal screw
  • #8-32 brass multiple drive (green) ground screw
  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Ratings are a permanent part of the device product identification
