Hubbell Wiring HBL5966VBLK

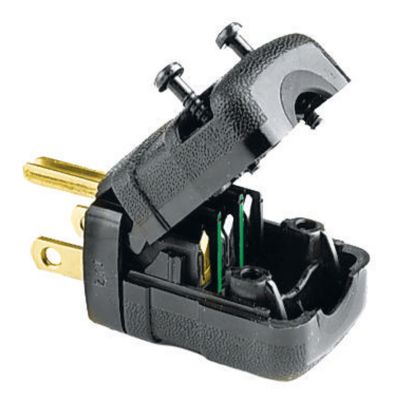

Wiring Device-Kellems Valise HBL5966VBLK 1-Phase Grounding Portable Straight Style Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
141091 HBL5966VBLK
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 15
  • Color: Black
  • Cord Diameter: 0.23 to 0.36
  • Dimensions: 1.24 in Dia x 1.6 in L
  • Enclosure: IP20
  • Grade: Commercial/Industrial
  • Horsepower: 2
  • Material: Polycarbonate
  • Nema Rating: 5-15P
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Grounding Portable Straight Style Standard Cord Mount
  • Voltage Rating: 125
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Portable Straight Style Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.36 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black, 1.24 in Dia x 1.6 in L
  • Features
  • Corrosion-resistant
  • Grounding plug
  • Cord mounted
  • 18 to 16 AWG solid or stranded copper conductor terminal accommodation
  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Nylon cord clamp, brass contact blade and ground contact blade
  • Removable cord inserts
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Eight specially designed load bearing locking lugs insure a positive fit as the blade holder and sides are closed
  • Unique, patented clamp type terminals provide superior electrical connection by bundling conductor strands when clamps are tightened
  • Nylon webs are provided to make wiring quick and easy by joining the three sections together during assembly
  • Totally insulated impact and crush resistant nylon body
  • Two captive multiple drive assembly screws
