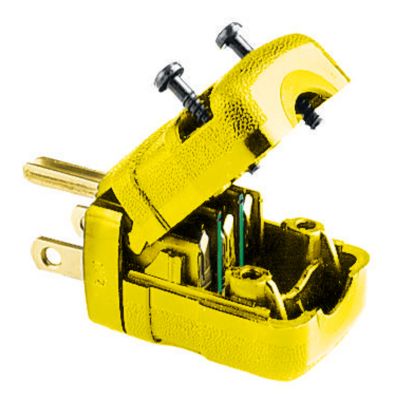

Hubbell Wiring HBL5966VY
Wiring Device-Kellems Valise HBL5966VY 1-Phase Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
6956202
HBL5966VY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Cord Diameter: 0.23 to 0.36
- Enclosure: IP20
- Grade: Commercial/Industrial
- Horsepower: 2
- Material: Polycarbonate
- Nema Rating: 5-15P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Grounding Portable Standard Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL5966VY, Straight Blade Plug, 1-Phase Grounding Portable Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.36 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow
- Features
- Hinged one piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
- Noryl® (polyphenylene oxide) cord clamp material
- 0.06 in brass contact blades
- 0.04 in copper alloy ground contact blade
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 18 to 16 AWG stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
