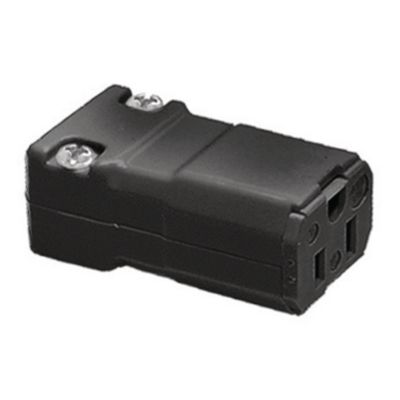

Hubbell Wiring HBL5969VBLK
Wiring Device-Kellems Valise HBL5969VBLK Female Grounding Insulated Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
150957
HBL5969VBLK
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Cord Diameter: 0.22 to 0.66
- Dimensions: 2.68 x 1.32 x 2.68
- Enclosure: IP20
- Grade: Commercial/Industrial
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Grounding Insulated Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Valise Straight Blade Connector, Female Grounding Insulated Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.68 x 1.32 x 2.68 in
- Features
- Hinged one-piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 12 AWG copper conductor terminal accommodation
- Certified for current interrupting at full rated current
- -40 to 75 deg C operating temperature
