Hubbell Wiring HBL5969VGY

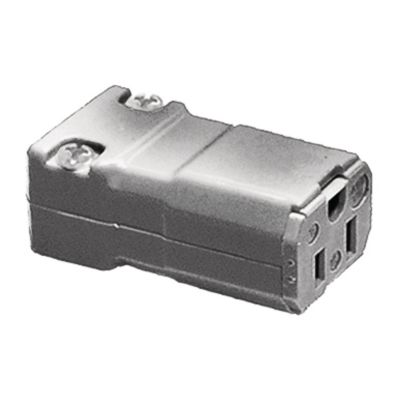

Wiring Device-Kellems Valise HBL5969VGY Female Standard Sized Straight Cord Mount Connector Body, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Plugs Connectors
4563423
HBL5969VGY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Gray
- Cord Diameter: 0.22 to 0.66
- Dimensions: 1-1/4 in W x 1-1/8 in D x 2-5/8 in H
- Enclosure: IP20
- Grade: Commercial/Industrial
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Standard Sized Straight Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems Valise Connector Body, Female Standard Sized Straight Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Gray, 1-1/4 in W x 1-1/8 in D x 2-5/8 in H
- Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
