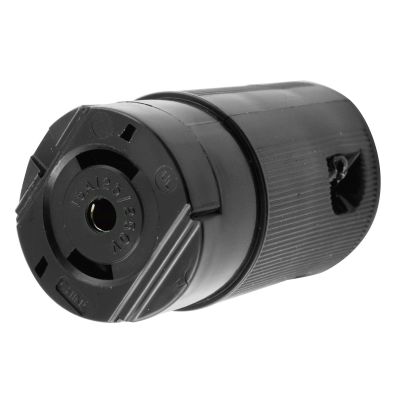

Hubbell Wiring HBL7484V
Wiring Device-Kellems Twist-Lock HBL7484V Heavy Duty Non-Grounding Cord Mount Locking Connector, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Black
Plugs Connectors
537892
HBL7484V
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Cord Diameter: 0.3 to 0.43
- Dimensions: 1.19 x 1.19 x 1.98
- Enclosure: IP20
- Grade: Industrial
- Material: Nylon
- Nema Rating: ML-3R
- Number of Poles: 3
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Heavy Duty Non-Grounding Cord Mount
- Voltage Rating: 125/250
Wiring Device-Kellems, HBL7484V, Locking Connector, Heavy Duty Non-Grounding Cord Mount, Series: HBL, 125/250 VAC, 15 A, 3 Pole, 3 Wires, ML-3R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.3 to 0.43 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.19 x 1.19 x 1.98 in Dimensions
- Features
- Non-grounding style connector
- Midget, hinged wiring style
- Zinc plated steel body holding screw thermoset body contact carrier, brass contact spring and ground contact
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
