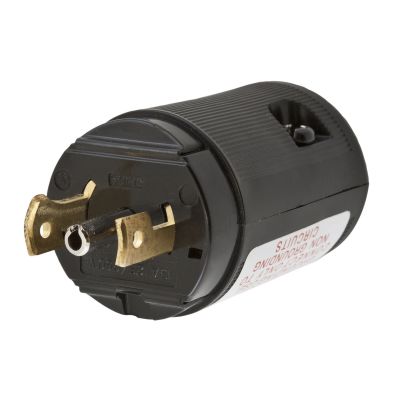

Hubbell Wiring HBL7485V

Wiring Device-Kellems Twist-Lock HBL7485V 1-Phase Non-Grounding Cord Mount Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Black
Plugs Connectors
560154 HBL7485V
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 15
  • Color: Black
  • Cord Diameter: 0.3 to 0.43
  • Dimensions: 1.61 x 1.18 x 1.18
  • Enclosure: IP20
  • Grade: Industrial
  • Material: Nylon
  • Nema Rating: ML-3P
  • Number of Poles: 3
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Non-Grounding Cord Mount
  • Voltage Rating: 125/250
Locking Devices, Midget Twist-LockпїЅ, Industrial, Male ValiseпїЅ Plug, 15A 125/250V AC, 3-Pole 3-Wire Non-Grounding, NEMA ML-3P, With Insulation Displacement Terminal, Black.
  • Features
  • Withstands 2000 VAC dielectric voltage
  • 14 AWG wire
  • 18 to 14 AWG stranded copper wire terminal accommodation
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Certified for current interrupting at full rated current interrupting
  • Terminals identified in accordance with UL 498
  • Brass insulation displacement terminals
  • Steel zinc plated body holding screw
  • Midget, hinged wiring style
  • Nylon cord clamp, nickel plated cold rolled steel terminal clamp, zinc plated steel cord clamp and body holding screw
  • Indoor dry unless protected by additional means
