Hubbell Wiring HBL7555

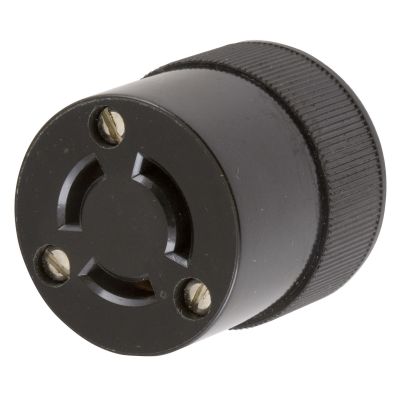

Wiring Device-Kellems Twist-Lock Insulgrip HBL7555 Female Non-Grounding Standard Cord Mount Locking Connector, 125/250 VAC, 10 A, 3 Poles, 3 Wires, Black
Plugs Connectors
464021
HBL7555
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 10
- Color: Black
- Cord Diameter: 0.296 to 0.625
- Dimensions: 1.53 x 1.53 x 2.78
- Enclosure: IP20
- Grade: Industrial
- Material: Phenolic
- Number of Poles: 3
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: Female Non-Grounding Standard Cord Mount
- Voltage Rating: 125/250
Wiring Device-Kellems Twist-Lock Insulgrip Locking Connector, Female Non-Grounding Standard Cord Mount, 125/250 VAC, 10 A, 3 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, 0.296 to 0.625 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Phenolic, Black, 1.53 x 1.53 x 2.78 in
- Features
- Clear polycarbonate terminal retainer, impact modified PBT housing, white valox cord clamp
- Natural (white) nylon cord clamp
- Cold rolled steel nickel plated terminal clamp
- #8-32 brass (white finish on neutral screw when used) terminal screw
- #8-32 brass (green finish) ground screw
- Natural white nylon body contact carrier
- Brass contact spring and spring binding plate
- 0.031 in brass ground contact
- Molded-in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- 15 A 14 AWG terminal accommodation
- Individually molded face for each blade configuration keeps debris out of plug interior
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Roomy wiring chamber provides ample space for wiring
- Standard style
- Cord mounted
- Insulated body
- Indoor dry unless protected by additional means
