Hubbell Wiring HBL7570

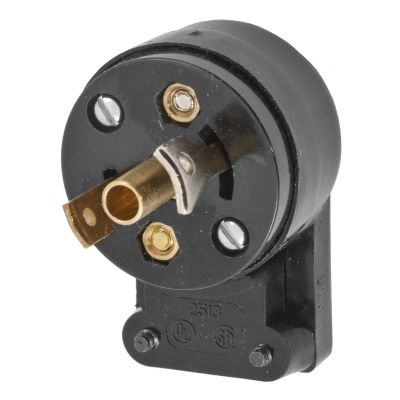

Wiring Device-Kellems Twist-Lock HBL7570 1-Phase Angled Grounding Male Midget Cord Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
141711
HBL7570
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Cord Diameter: 0.335 to 0.421
- Dimensions: 1.68 x 1.17 x 1.33
- Enclosure: IP20
- Grade: Industrial
- Material: Nylon
- Nema Rating: ML-2P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Angled Grounding Male Midget Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL7570, Locking Plug, 1-Phase Angled Grounding Male Midget Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, ML-2P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.335 to 0.421 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.68 x 1.17 x 1.33 in Dimensions
- Features
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
- Totally insulated body adds extra measure of safety
