Hubbell Wiring HBL7582G

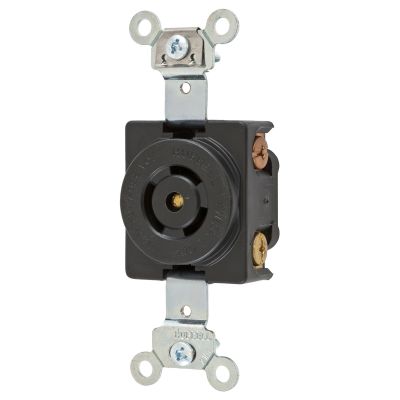

Wiring Device-Kellems Midget Twist-Lock HBL7582G 1-Phase Grounding Standard Screw Mount Locking Receptacle, 125/250 VAC, 10/15 A, 2 Poles, 3 Wires, Black
Plugs Connectors
24216
HBL7582G
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 10/15
- Color: Black
- Dimensions: 3.31 x 1.53 x 1.25
- Enclosure: IP20
- Grade: Industrial
- Material: Phenolic
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 70
- terminal type: Screw
- Type: 1-Phase Grounding Standard Screw Mount
- Voltage Rating: 125/250
Wiring Device-Kellems, HBL7582G, Locking Receptacle, 1-Phase Grounding Standard Screw Mount, 125/250 VAC, 10/15 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, -40 to 70 deg C, Screw Terminal, Phenolic, Black, 3.31 x 1.53 x 1.25 in Dimensions
- Features
- 0.062 in steel terminal clamp
- #8-32 brass terminal screw
- #8-32 brass (green) ground screw
- 0.031 in brass contact spring
- Zinc plated steel mounting screw
- Black nylon cover (top), black polyester base
- 0.031 in brass ground contact
- 0.05 in zinc plated steel bridge (mounting strap)
- Brass rivet
- Stainless steel auto ground clip
- Molded in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- UL94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability
- Corrosion resistant zinc plated steel one-piece mounting strap
- 10 A at 250 VAC, 15 A at 125 VAC multi-rating
- Thermoset construction offers high heat resistance
- High performance copper alloy contacts
