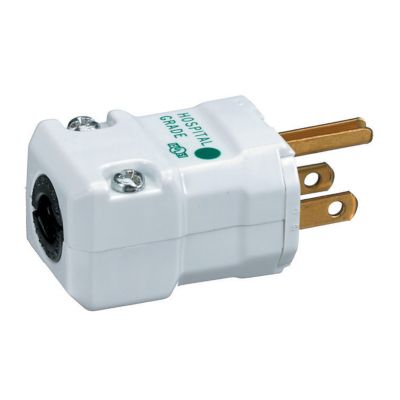

Hubbell Wiring HBL8115V
Wiring Device-Kellems Valise HBL8115V 1-Phase Grounding Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Plugs Connectors
428231
HBL8115V
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: White
- Cord Diameter: 0.3 to 0.66
- Dimensions: 1.88 x 1.25 x 1.13
- Enclosure: IP20
- Grade: Hospital
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 5-15P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Grounding Standard Cord Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL8115V, Straight Blade Plug, 1-Phase Grounding Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Hospital Grade, IP20 Enclosure, 0.3 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.88 x 1.25 x 1.13 in Dimensions
- Features
- Hinged one-piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Brass blades, plated steel assembly screws
- Certified for current interrupting at full rated current
- Withstands 2000 VAC dielectric voltage
- Ratings are a permanent part of the device product identification
- 16 to 12 AWG conductor terminal accommodation
- Terminals identified in accordance with UL 498 and CSA
