Woodhead 25W04MB

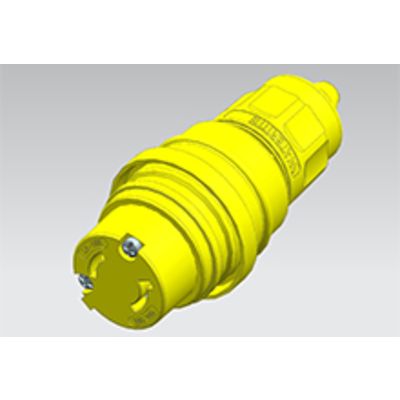

Woodhead® Female Connector, Series: 130146, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA L1-15 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Yellow
Supporting Information
- F2 1/2 in cord grip body|Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi|Color-coded 1/4 in terminal screws pre-set in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers|Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord
- F2 1/2 in cord grip body
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Brand:Â WoodheadAmperage Rating:Â 15Color:Â YellowEnclosure:Â IP67Nema Rating:Â NEMA L1-15Number of Poles:Â 2Number Of Wires:Â 2Series:Â 130146Temperature Rating:Â -40 to 75Voltage Rating:Â 125
