Woodhead 2648

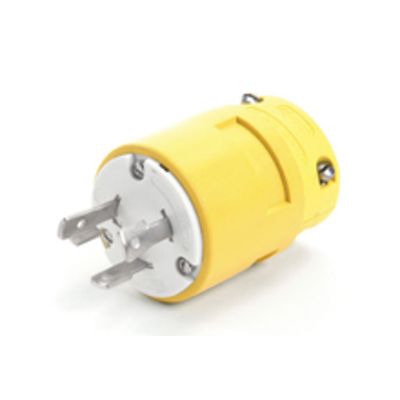

Woodhead® Super-Safeway® Locking Plug, Male, Series: 130141, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, Industrial Grade, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
Supporting Information
- NEoTEX Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway offering|Rugged nylon bodies within the Safeway offering provide exceptional durability and performance|Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Two piece cord clamp strain relief includes tri-drive screws to firmly secure the cord|Nickel plated brass plug blades and connector contacts|NEoTEX Paracril OZO rubber Super-Safeway outer housing|Stainless steel face screw|Nylon face insert|Brass wire saddle clamp|zinc plated steel cord clamp screws|Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber Super-Safeway® outer housing
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- zinc plated steel cord clamp screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Brand: WoodheadAmperage Rating: 20Color: YellowCord Diameter: 0.335 to 0.64Grade: Industrial
