Woodhead 26W81

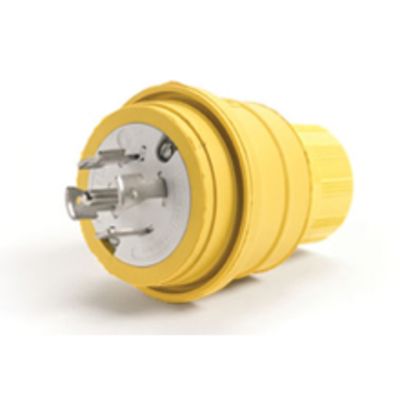

Woodhead reg; Watertite reg; 26W81 130147 3-Phase Male Plug With Locking Blade, 208 VAC, 20 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
242628
26W81
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Cord Diameter: 3/16 to 13/16
- Dimensions: 2-1/2 in Dia x 3 in L
- Enclosure: NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
- Horsepower: 3
- Material: NEoTEX® Paracril OZO Rubber
- Nema Rating: L21-20
- Number of Poles: 4
- Number Of Wires: 5
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Male
- Voltage Rating: 208
Woodhead® Watertite® Plug, 3-Phase Male, Series: 130147, 208 VAC, 20 A, 3 hp, 4 Pole, 5 Wires, L21-20 NEMA Rating, NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 3/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow, 2-1/2 in Dia x 3 in L Dimensions
- Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seal cord without damaging the cord
