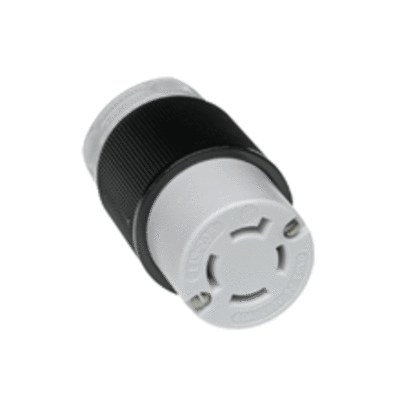

Woodhead 27T75
Woodhead® Female Connector, Series: 130145, 250 VAC, 20 A, 3 Pole, 4 Wires, NEMA L15-20 NEMA Rating, Industrial Grade, -40 to 75 deg C, Nylon, Black/White
Supporting Information
- Neotex paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway offering|Rugged nylon bodies within the Safeway offering provide exceptional durability and performance|Color-coded 1/4 in terminal screws pre-set in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers|Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Two piece strain relief seals cord without damaging the cord|Single receptacle|Stainless steel face screws|Brass wire saddle clamp|0.425 to 1.15 in connector|Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Neotex® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two piece strain relief seals cord without damaging the cord
- Single receptacle
- Stainless steel face screws
- Brass wire saddle clamp
- 0.425 to 1.15 in connector
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Brand:Â WoodheadAmperage Rating:Â 20Color:Â Black/White
