Woodhead 27W48

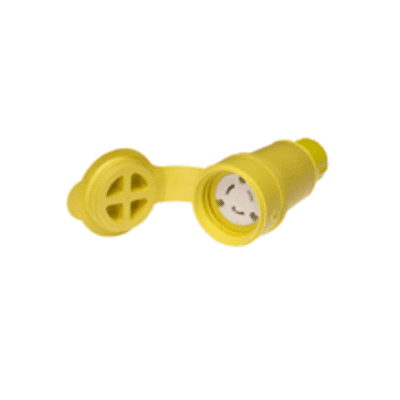

Woodhead® Watertite® Connector, Series: 130147, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, IP67 Enclosure, 11/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
Supporting Information
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi|Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord|Single receptacle|F3 3/4 in cord grip body size|Female connector|Nickel plated brass plug blades and connector contacts, NEoTEX Paracril OZO rubber outer housing and grommet, stainless steel face screw nylon face insert brass wire saddle clamp, Lexan receptacle cover plate and Closure caps|Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Single receptacle
- F3 3/4 in cord grip body size
- Female connector
- Nickel plated brass plug blades and connector contacts, NEoTEX® Paracril OZO rubber outer housing and grommet, stainless steel face screw nylon face insert brass wire saddle clamp, Lexan® receptacle cover plate and Closure caps
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Brand: WoodheadAmperage Rating: 20Color: YellowCord Diameter: 11/16 to 13/16Enclosure: IP67
