Woodhead 28W08

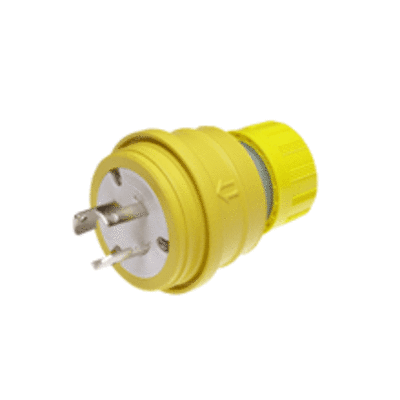

Woodhead® Watertite® Locking Plug, Male, Series: 130147, 250 VAC, 30 A, 3 Pole, 3 Wires, IP67 Enclosure, 3/4 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
Supporting Information
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi|Color coded 1/4 in terminal screws pre set in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord|Nickel plated brass plug blades and connector contacts|NEoTEX Paracril OZO rubber outer housing and grommet|Stainless steel face screw|Nylon face insert|Brass wire saddle clamp|F3 body 3/4 in cord grip|Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%|Non-NEMA configuration
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws pre set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- F3 body 3/4 in cord grip
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Non-NEMA configuration
- Brand: WoodheadAmperage Rating: 30Color: YellowCord Diameter: 3/4Enclosure: IP67
