Woodhead 28W82

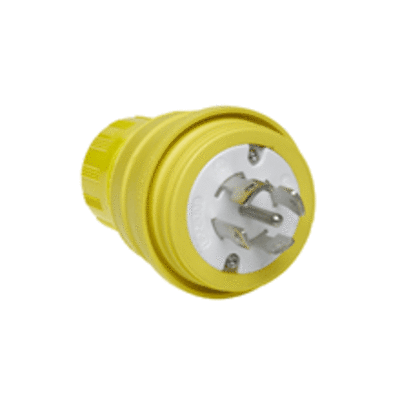

Woodhead reg; Watertite reg; 28W82 130147 3-Phase Male Plug With Locking Blade, 480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
513461
28W82
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 1
- Enclosure: IP67
- Material: Rubber
- Nema Rating: L22-30
- Number of Poles: 4
- Number Of Wires: 5
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw/Wire
- Type: 3-Phase Male
- Voltage Rating: 480
Woodhead® Watertite® Plug, 3-Phase Male, Series: 130147, 480 VAC, 30 A, 4 Pole, 5 Wires, L22-30 NEMA Rating, IP67 Enclosure, 1 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
- Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cord without damaging the cord
- Nickel plated brass plug blade and connector contact
- NEoTEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- F4 1 in cord grip body size
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Lexan receptacle cover plate and closure cap
