Woodhead 4774

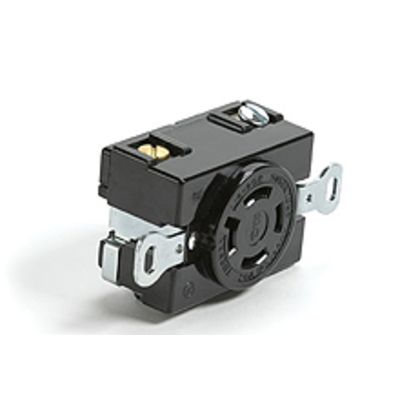

Woodhead reg; 4774 130149 Female Heavy Duty Single Locking Receptacle With Locking Blade, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black
Plugs Connectors
38410 4774
Woodhead
$0.00 / ea

  • Amperage Rating: 20
  • Color: Black
  • Grade: Specification
  • Material: Nylon
  • Nema Rating: NEMA L14-20
  • Number of Poles: 3
  • Number Of Wires: 4
  • Series: 130149
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: Female Heavy Duty Single
  • Voltage Rating: 125/250
Woodhead® Locking Receptacle, Female Heavy Duty Single, Series: 130149, 125/250 VAC, 20 A, 3 Pole, 4 Wires, NEMA L14-20 NEMA Rating, Specification Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black
  • Features
  • NEO-TEX® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
  • Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Two-piece cable clamp strain relief includes tri-drive screws to firmly secure the cable
