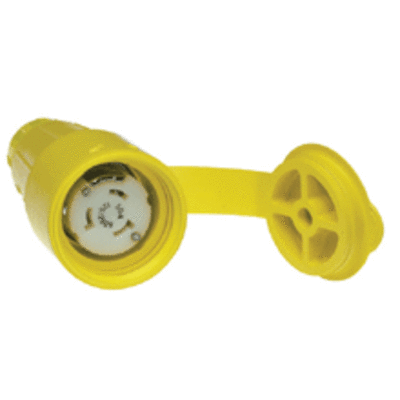

Woodhead 63W64
Woodhead® Watertite® Locking Connector, Female, Series: 130155, 125 VAC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, 7/8 to 1-3/8 in Diameter Cord, Screw Terminal, Rubber, Yellow, 3.25 in Dia x 6.38 in L Dimensions
Supporting Information
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi|Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord|Nickel plated brass plug blades and connector contacts|NEoTEX Paracril OZO rubber outer housing and grommet|Stainless steel face screw|Nylon face insert|Brass wire saddle clamp
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- Brand: WoodheadAmperage Rating: 50Color: YellowCord Diameter: 7/8 to 1-3/8Dimensions: 3.25 in Dia x 6.38 in LEnclosure: IP67Grade: Industrial
