Woodhead 69W83

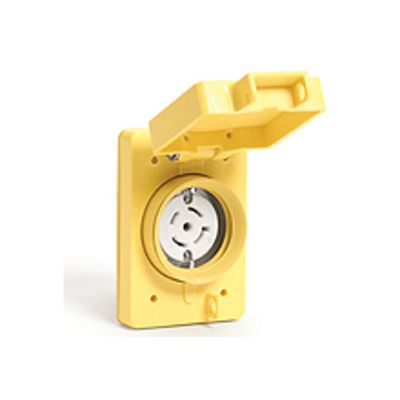

Woodhead reg; Watertite reg; 69W83 130147 3-Phase Female Receptacle With Locking Blade and Single Flip Coverplate, 600 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
6983509
69W83
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 0.437 to 1.1
- Enclosure: NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
- Material: NEoTEX® Paracril OZO Rubber
- Nema Rating: L23-30
- Number of Poles: 4
- Number Of Wires: 5
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Female
- Voltage Rating: 600
Woodhead® Watertite® Receptacle, 3-Phase Female, Series: 130147, 600 VAC, 30 A, 4 Pole, 5 Wires, L23-30 NEMA Rating, NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 0.437 to 1.1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow
- Features
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seal cord without damaging the cord
