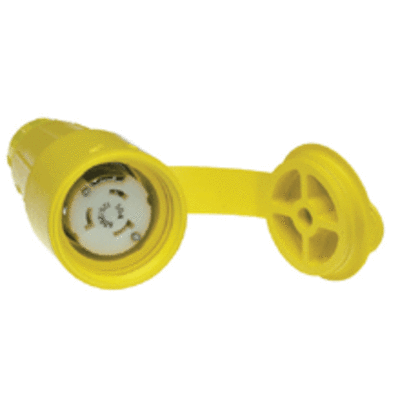

Woodhead CS83W64
Woodhead® Watertite® Female Connector, Series: 130155, 250 VAC, 50 A, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Yellow
Supporting Information
- Single receptacle|3-phase configuration|Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi|Color coded 1/4 in terminal screws preset in open position, ready to wire|Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers|Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation|Transparent wiring guide to verify all wire strands are in place before securing wire|Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life|Three piece strain relief seals cord without damaging the cord|F5 body 1-1/4 in cord grip|Non-NEMA rated
- Single receptacle
- 3-phase configuration
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- F5 body 1-1/4 in cord grip
- Non-NEMA rated
- Brand: WoodheadAmperage Rating: 50Voltage Rating: 250Color: YellowEnclosure: IP67Number of Poles: 3Number Of Wires: 4Series: 130155Temperature Rating: -40 to 75
