Hubbell Wiring 2182WTRA

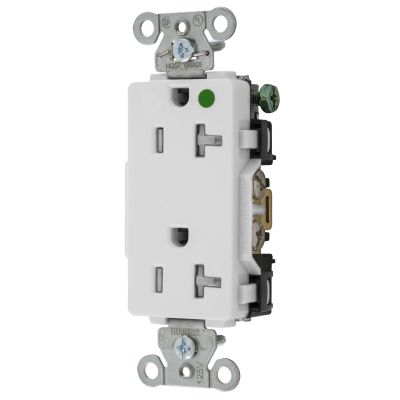

Wiring Device-Kellems Hubbell-PRO Style Line 2182WTRA 1-Phase Decorator Duplex Heavy Duty Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
7768415
2182WTRA
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 3.28 x 1.57 x 1.15
- Grade: Hospital
- Horsepower: 1
- Material: Nylon
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Decorator Duplex Heavy Duty Standard Tamper-Resistant Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Hubbell-PRO Style Line Straight Blade Receptacle, 1-Phase Decorator Duplex Heavy Duty Standard Tamper-Resistant Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 3.28 x 1.57 x 1.15 in
- Features
- Circuit ID marking area on hospital grade
- Steel mounting strap, self-grounding
- Exclusive nickel plated bypass contact design increases contact pressure, lowering the operating temperature
- Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas
- Impact resistant deep face design prevents breakage
- Triple wipe power contacts
- Best in class TR mechanism
- Tested to UL hospital grade test standards for impact resistance and abrupt plug pull out
