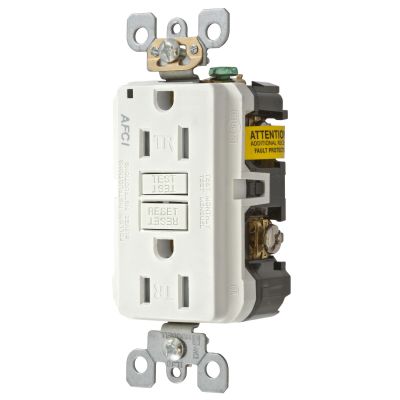

Hubbell Wiring AFR15TRW
Wiring Device-Kellems AFR15TRW 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
7340334
AFR15TRW
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: White
- Dimensions: 1.31 in W x 1.29 in D x 4.21 in H
- Horsepower: 1 hp, 2 hp
- Material: Thermoplastic/Composite
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -30 to 150
- terminal type: Screw
- Type: 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, AFR15TRW, Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 15 A, 1 hp, 2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, White, 1.31 in W x 1.29 in D x 4.21 in H Dimensions
- Features
- Meets new 2017 national electric code for AFCI protection
- Meets or exceeds UL requirements for tripping time on series and parallel arcs
- Tamper resistant and self-grounding construction are standard features
- Automatically tests the AFCI each time the reset button is pressed in place
- Green power ON LED indicator
- No reset when tested if AFCI functionality is compromised
