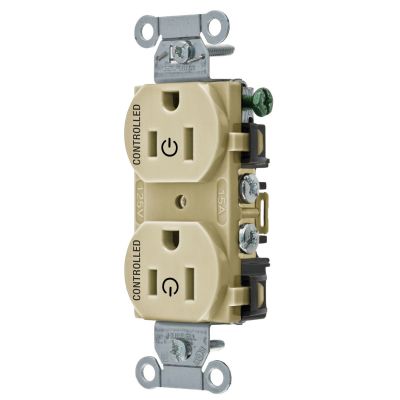

Hubbell Wiring BR15C2I
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex 2-Controlled Face Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -40 to 75 deg C, Screw Terminal, Nylon, Ivory, 1.32 x 0.83 x 3.28 in
Supporting Information
- Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems|Markings can be read regardless of mounting orientation|Complements Hubbell's Load Logic control's or any available energy management system
- These receptacles are embossed with the universally recognized power symbol and the word CONTROLLED remains clearly visible after installation
- Permanent power symbol remains clearly visible after installation
- Control both outlets per device for 100% controlled applications or just one outlet for 50% controlled applications
- Part of the Hubbell® load Logic plug control system
- Complements Hubbell® load logic controls or any available energy management system
- Half controlled receptacle with one face marked and the circuit tab removed
- Brand: Hubbell WiringAmperage Rating: 15Color: IvoryDimensions: 1.32 x 0.83 x 3.28Horsepower: 1/2Material: NylonNema Rating: 5-15RNumber of Poles: 2Number Of Wires: 3Temperature Rating: -40 to 75terminal type: Screw
