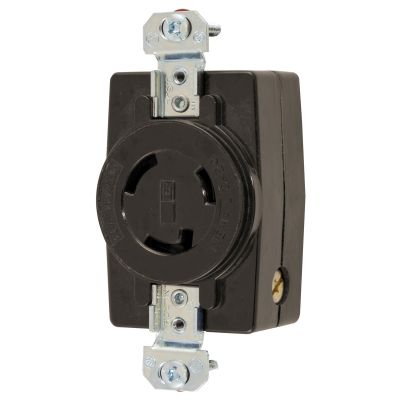

Hubbell Wiring HBL2360
Wiring Device-Kellems Twist-Lock HBL2360 1-Phase Non-Grounding Standard Screw Mount Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Black
Receptacles
6989614
HBL2360
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Black
- Enclosure: IP20
- Grade: Industrial
- Horsepower: 1
- Material: Nylon
- Nema Rating: L10-20R/WD1/WD5
- Number of Poles: 3
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Non-Grounding Standard Screw Mount
- Voltage Rating: 125/250
Wiring Device-Kellems, HBL2360, Locking Receptacle, 1-Phase Non-Grounding Standard Screw Mount, 125/250 VAC, 20 A, 1 hp, 3 Pole, 3 Wires, L10-20R/WD1/WD5 NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black
- Features
- All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Face color coding by voltage facilitates locating and mating of proper devices
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Flush mount
- Indoor dry unless protected by additional means
- Screw mount
- 14 to 8 AWG wire
