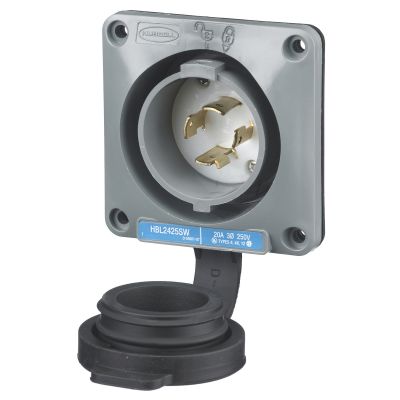

Hubbell Wiring HBL2425SW
Wiring Device-Kellems Twist-Lock Safety-Shroud HBL2425SW 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount Locking Flanged Inlet, 250 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
Receptacles
4486436
HBL2425SW
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray/White
- Dimensions: 3.75 x 3.75 x 2.44
- Enclosure: NEMA 4X/12/IP66
- Grade: Industrial
- Horsepower: 3
- Material: Thermoplastic
- Nema Rating: L15-20P/WD1/WD5
- Number of Poles: 3
- Number Of Wires: 4
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems, HBL2425SW, Locking Flanged Inlet, 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20P/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.44 in Dimensions
- Features
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
- Closure cap is included for environmental seal when device is not in use
- 1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Screw mount
- 12 to 10 AWG wire
