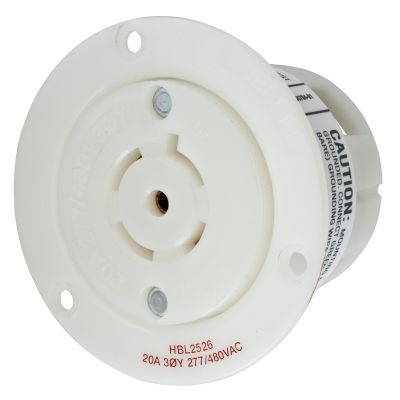

Hubbell Wiring HBL2526

Wiring Device-Kellems Twist-Lock Insulgrip HBL2526 3-Phase Flanged Grounding Single Standard Screw Mount Locking Receptacle, 277/480 VAC, 20 A, 4 Poles, 5 Wires, White
Receptacles
4511730 HBL2526
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL2526
  • Amperage Rating: 20
  • Color: White
  • Dimensions: 3.06 x 3.06 x 2.27
  • Enclosure: IP20
  • Grade: Industrial
  • Horsepower: 5
  • Material: Nylon
  • Nema Rating: L22-20R
  • Number of Poles: 4
  • Number Of Wires: 5
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 3-Phase Flanged Grounding Single Standard Screw Mount
  • Voltage Rating: 277/480
Locking Devices, Twist-LockпїЅ, Industrial, InsulgripпїЅ Flanged Receptacle, 20A Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-20R, Screw Terminal , Nylon casing, back wired, White.
QTY
Add to Wishlist
  • Features
  • NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson)
