Hubbell Wiring HBL2615SW

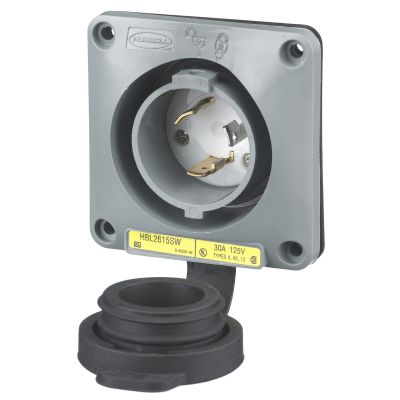

Wiring Device-Kellems Twist-Lock Safety-Shroud HBL2615SW 1-Phase Grounding Standard Single Shrouded Watertight Screw Mount Locking Flanged Inlet, 125 VAC, 30 A, 2 Poles, 3 Wires, Gray
Receptacles
461227
HBL2615SW
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Gray
- Dimensions: 3.75 x 3.75 x 2.27
- Enclosure: NEMA 4/4X/12/IP66
- Grade: Industrial
- Material: Thermoplastic
- Nema Rating: L5-30P/WD1/WD5
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Grounding Standard Single Shrouded Watertight Screw Mount
- Voltage Rating: 125
Locking Devices, Twist-LockпїЅ, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray.
- Features
- Withstands 2000 VAC minimum dielectric voltage
- 30 A 10 AWG terminal accommodation
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- #32-10 brass terminal screw
- Brass blade
- Clear polycarbonate terminal retainer
- 0.08 in steel nickel plated terminal clamp
- Stainless steel, multi-drive body holding screws
- Natural white nylon body contact carrier
- Gray Valox® flanged casing
- Stainless steel 302/304 multi-drive mounting screws
- 1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Screw mount
- 12 to 8 AWG wire
