Hubbell Wiring HBL2620SR2

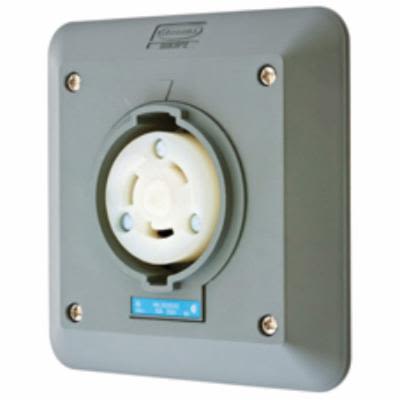

Hubbell Twist-Lock Safety-Shroud HBL2620SR2 2-Gang Shrouded Single Locking Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray
Receptacles
6772184
HBL2620SR2
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Gray
- Dimensions: 5.12 in W x 0.77 in D x 5.12 in H
- Horsepower: 2
- Material: PBT
- Nema Rating: NEMA L6-30R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 2-Gang Shrouded Single
- Voltage Rating: 250
Locking Devices, Twist-LockпїЅ, Safety-ShroudпїЅ Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, PBT housing, semi-flush, Two Gang, Gray
- Features
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- 3-wire grounding
- VO or better flammability
- 30 A 10 AWG terminal accommodation
- NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw
- Zinc plated brass mounting screw material
- 0.031 in brass ground contact
- Natural white nylon body contact carrier material
- Steel rivet material
- Steel, nickel plated 0.08 in curved, scalloped terminal clamp material
- Gray Valox® 357U housing and flange material
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are easily visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
