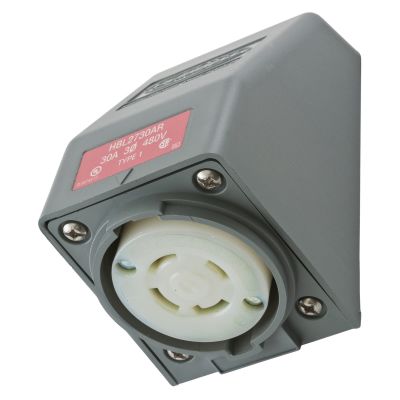

Hubbell Wiring HBL2730AR

Wiring Device-Kellems Twist-Lock Safety-Shroud HBL2730AR 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Gray/White
Receptacles
419524 HBL2730AR
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL2730AR
  • Amperage Rating: 30
  • Color: Gray/White
  • Dimensions: 4.77 x 2.85 x 3.14
  • Grade: Industrial
  • Horsepower: 10
  • Material: Valox™
  • Nema Rating: L16-30R
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 3-Phase Heavy Duty Single Screw Mount
  • Voltage Rating: 480
Locking Devices, Twist-LockпїЅ, Safety-ShroudпїЅ, Angled Receptacle, One Gang, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30R, Screw Terminal , Gray
QTY
Add to Wishlist
  • Features
  • Withstands 2000 VAC dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • #8-32 brass terminal and ground screw
  • 10 AWG terminal accommodation
  • Certified for current interrupting at full rated current interrupting
  • Steel zinc plated mounting screw
