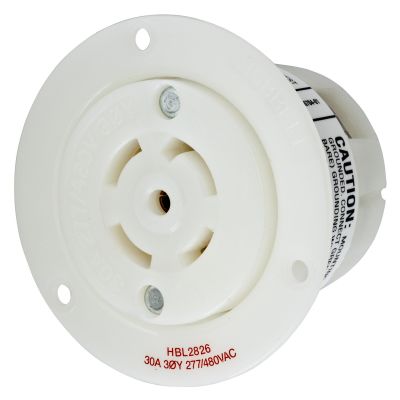

Hubbell Wiring HBL2826

Wiring Device-Kellems Twist-Lock Insulgrip HBL2826 3-Phase Flanged Standard Single Screw Mount Locking Receptacle, 277Y/480 VAC, 30 A, 4 Poles, 5 Wires, White
Receptacles
6838847 HBL2826
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL2826
  • Amperage Rating: 30
  • Color: White
  • Dimensions: 3.06 x 3.06 x 2.27
  • Enclosure: NEMA 4X/12/IP20
  • Grade: Industrial
  • Horsepower: 10
  • Material: Nylon
  • Nema Rating: L22-30R
  • Number of Poles: 4
  • Number Of Wires: 5
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 3-Phase Flanged Standard Single Screw Mount
  • Voltage Rating: 277Y/480 VAC
Locking Devices, Twist-LockпїЅ, Industrial, Flush Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30R, Screw Terminal, Black
QTY
Add to Wishlist
  • Features
  • NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson)
  • Backwired terminations for ease of installation
  • Impact-resistant thermoplastic construction
