Hubbell Wiring HBL330R4W

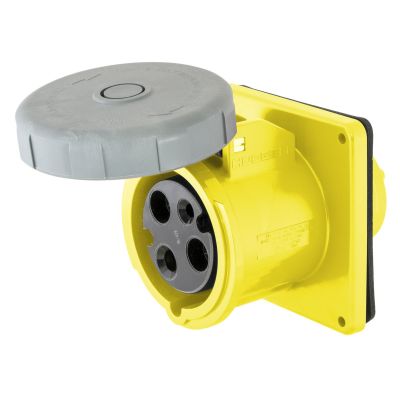

Wiring Device-Kellems HBL330R4W 1-Phase Female Single Flanged Watertight Screw Mount Pin and Sleeve Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Receptacles
7179560
HBL330R4W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Dimensions: 3.75 in W x 4.27 in H
- Grade: Industrial
- Material: Thermoplastic
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 1-Phase Female Single Flanged Watertight Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL330R4W, Pin and Sleeve Receptacle, 1-Phase Female Single Flanged Watertight Screw Mount, 125 VAC, 30 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Yellow, 3.75 in W x 4.27 in H Dimensions
- Features
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Color coded housings for easy identification
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
