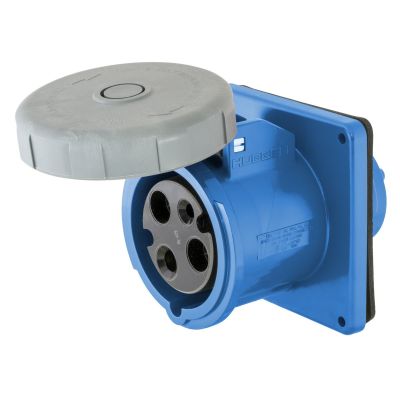

Hubbell Wiring HBL360R6W
Wiring Device-Kellems HBL360R6W 1-Phase Grounding Single Flanged Watertight Screw Mount Pin and Sleeve Receptacle, 250 VAC, 60 A, 2 Poles, 3 Wires, Blue
Receptacles
1555110
HBL360R6W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 60
- Color: Blue
- Dimensions: 4.5 in W x 4.07 in D x 5.1 in H
- Enclosure: IP67
- Grade: Industrial
- Material: Thermoplastic
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 1-Phase Grounding Single Flanged Watertight Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems, HBL360R6W, Pin and Sleeve Receptacle, 1-Phase Grounding Single Flanged Watertight Screw Mount, 250 VAC, 60 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 4.5 in W x 4.07 in D x 5.1 in H Dimensions
- Features
- 8 to 2 AWG copper wire terminal accommodation
- 600 VAC maximum working voltage
- 3000 VAC minimum dielectric withstand voltage
- Watertight per IEC 60309-1 moisture resistance
