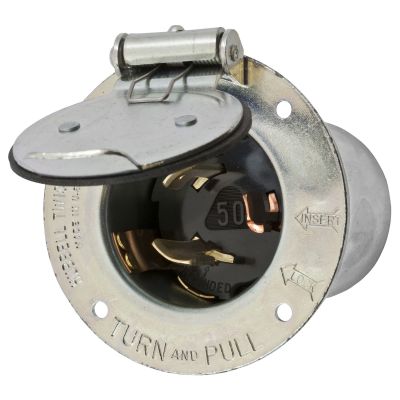

Hubbell Wiring HBL3767
Wiring Device-Kellems Twist-Lock HBL3767 3-Phase Extra Heavy Duty Grounding Standard Screw Mount Locking Flanged Inlet With Lift Cover, 600 VAC/250 VDC, 50 A, 2 Poles, 3 Wires, Metallic
Receptacles
6850737
HBL3767
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 50
- Color: Metallic
- Dimensions: 2.17 x 3.5 x 2.56
- Grade: Industrial
- Material: Steel
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Extra Heavy Duty Grounding Standard Screw Mount
- Voltage Rating: 600 VAC/250 VDC
Locking Devices, Twist-LockпїЅ, Industrial, Flanged Inlet, 50A 250V AC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
- Features
- Withstands 2000 VAC minimum dielectric voltage
- 50 A 6 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Steel pressure screw, zinc plate ground screw
- Brass blade
- Steel weldment flanged casing
- Steel, zinc plated mounting screw
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- Non-NEMA rated
- 6 AWG wire
